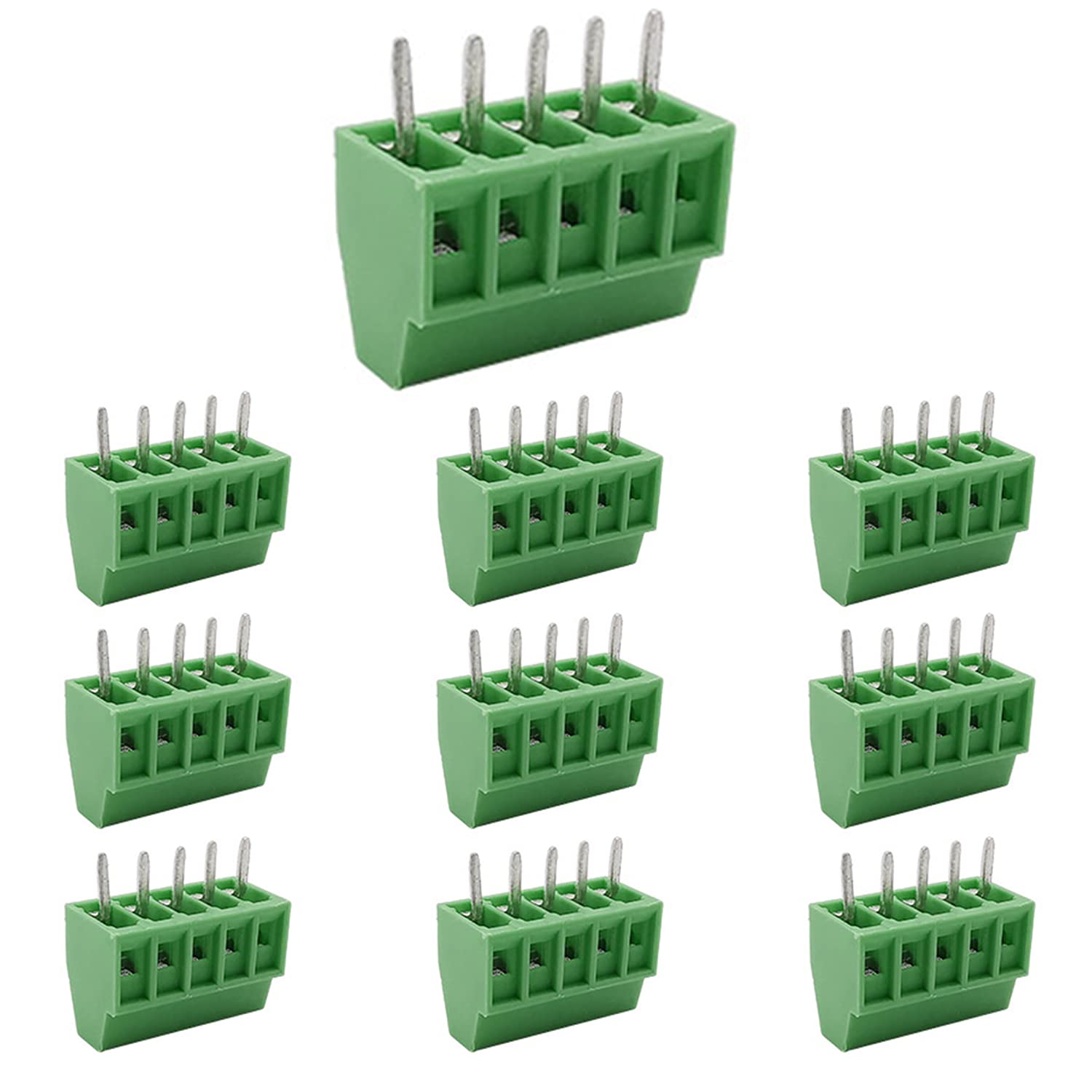

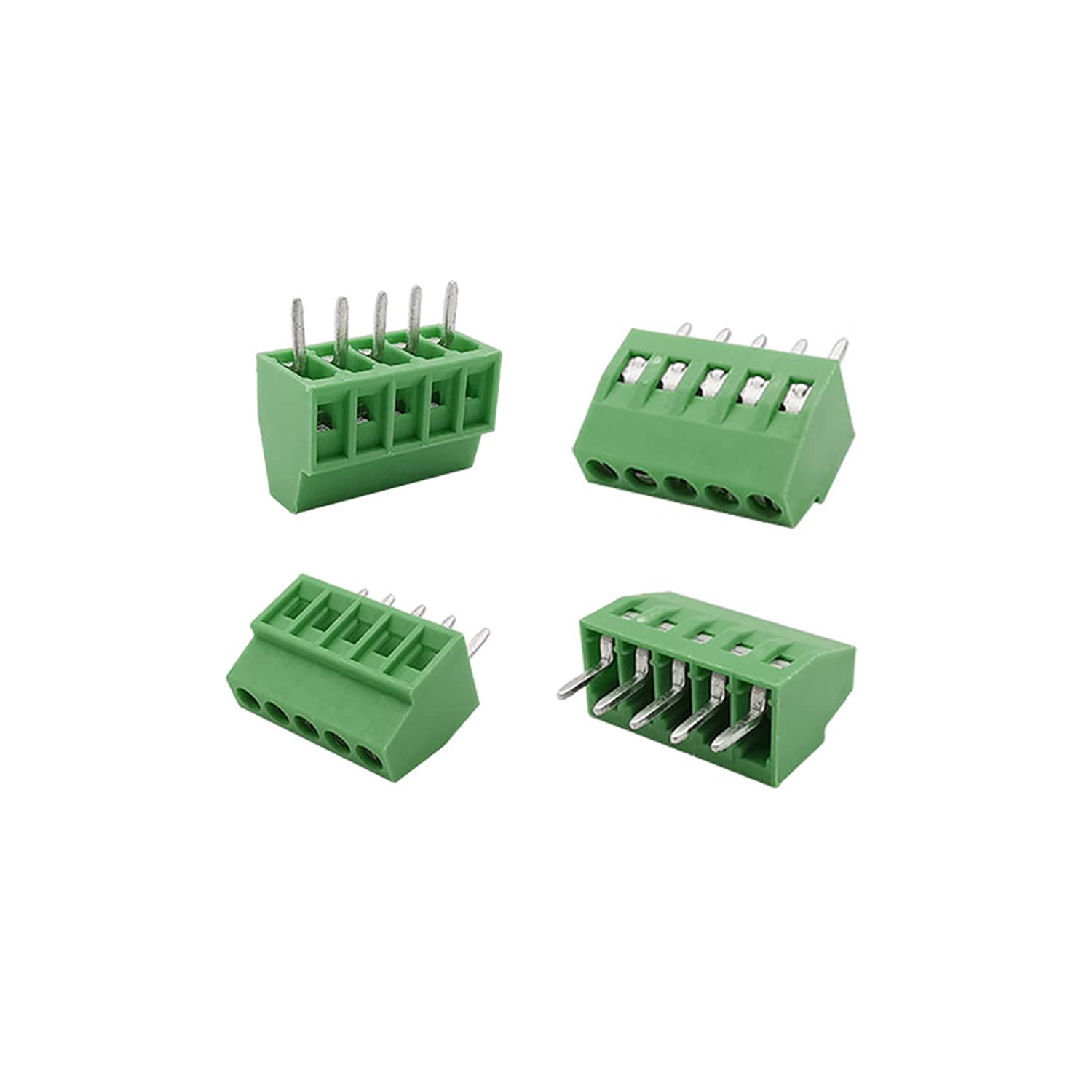

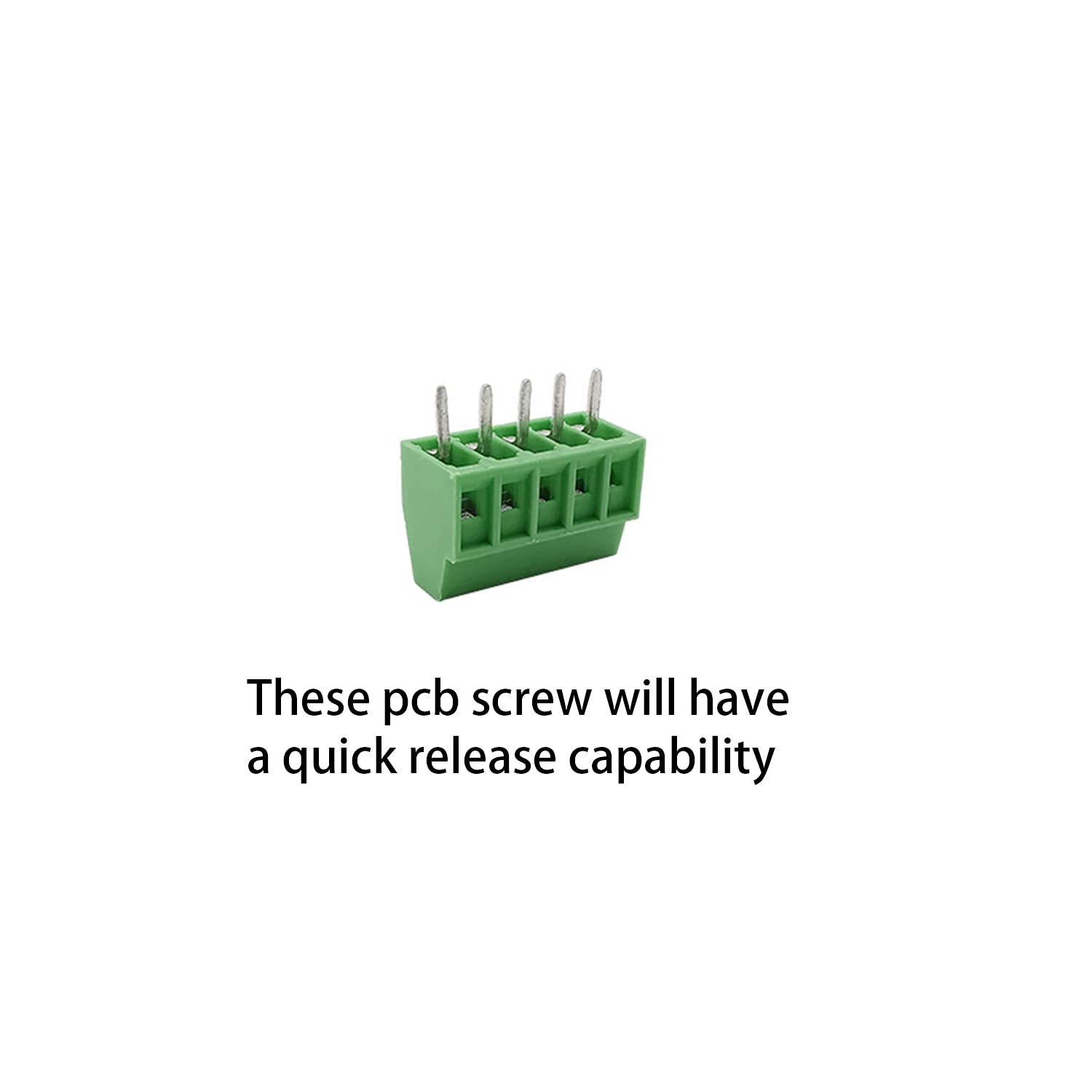

Name: Cermant 10 pcs 5 Pin XK128-2.54MM (0.1inch) Pitch Screw Terminal Block Connector Green 150V 6A PCB Mount Screw Terminal Block Connector (2.54MM-5P-10Pcs)
SKU: 112
Availability: InStock
Rating: 5.00 (1 reviews)

Cermant 10 pcs 5 Pin XK128-2.54MM (0.1inch) Pitch Screw Terminal Block Connector Green 150V 6A PCB Mount Screw Terminal Block Connector (2.54MM-5P-10Pcs)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Product Name:PCB Screw Terminal Block Connector；Model :XK128-2.54MM.

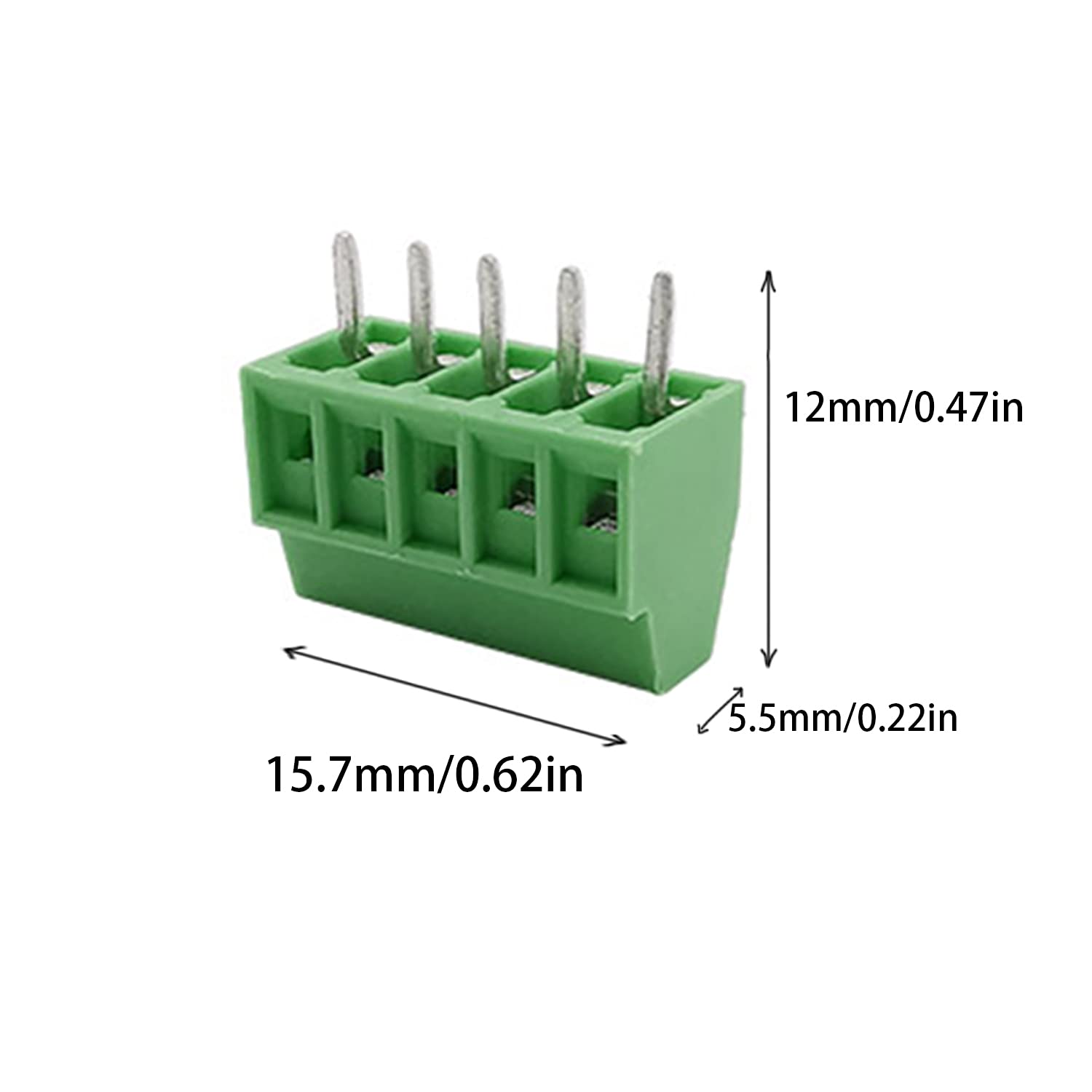

Terminal Pitch:2.54mm/ 0.1inch pitch PCB screw terminal block.
Terminal Pitch:2.54mm/ 0.1inch pitch PCB screw terminal block；2 / 3 / 4 / 5 / 6 / 7 / 8 / 10 / 12 poles, each 1 Piece.

Hurry! only 10000 left in stock.

Description

Specification
1.Color: Green
2.Material: Plastic, Metal
3.Rated Voltage 150V AC, Rated Current: 6A
4.Withstanding voltage：AC1250V/1Min
5.Pin Distance: 2.54mm/0.1″
6.Wire Range: 26-18AWG
7.Temp range：-30℃-+120℃
8.Max soldering：+250℃5s
9.Torque：0.1Nm（0.88lb.in）
10.Stripping length：5.0-6.0mm
Package Included:
10 pcs Screw Terminal Block Connector

Additional information

color	Black, Red
